KF58減速電機詳細信息

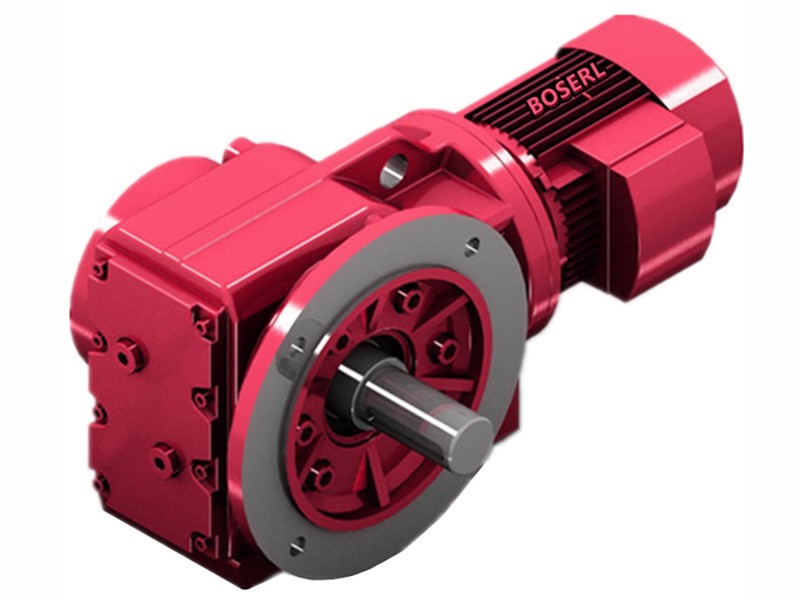

KF58減速電機
訂購熱線：13360667204
KF58減速電機選型計算：齒輪減速馬達
槳式攪拌機參數：攪動飼料0.32噸，每分鐘攪動138圈，攪拌槳輪直徑67
電機轉數1400÷138圈（輸出轉速）=減速比10.14
攪拌0.32噸=3136N
3136N×0.0335攪拌槳輪半徑=105.056×2攪拌水狀物料扭矩放大兩倍=210.112N.m
210.112N.m÷10.14減速比=20.72N.m電機扭矩
20.72N.m電機扭矩換算成功率3.29KW以上
對應的KF58減速機選型參數：
型號：KF58-BEJ4KW
減速比：9.59
輸出轉數：152轉每分鐘
輸出扭矩：250N.m
安全系數：1.6
KF58減速電機基座尺寸：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）伺服電機減速機

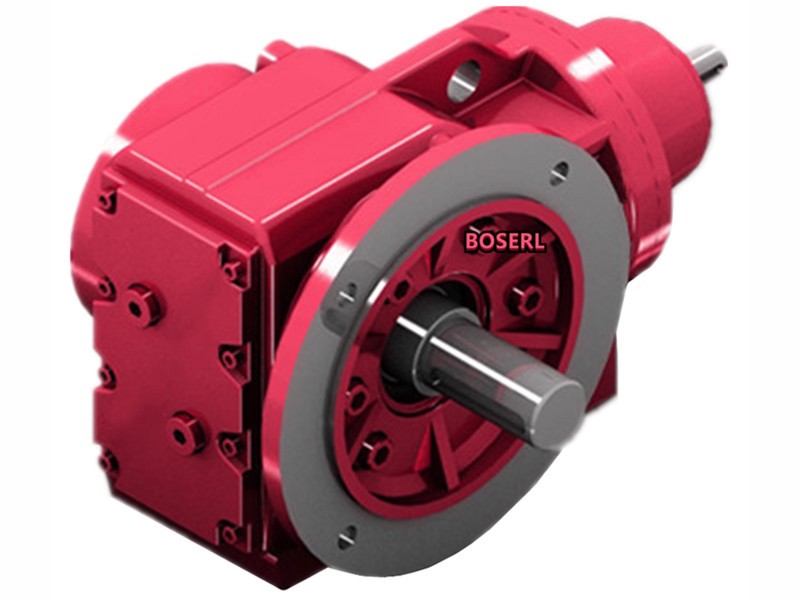

KF58斜齒輪傘齒輪減速機型號：
KF58減速電機型號參數：直角減速機
KF58減速機配0.12KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K57Y0.12KW | 0.12KW | 9.5rpm | 120N.m | 5 |
| K57Y0.12KW | 0.12KW | 11rpm | 103N.m | 5.8 |
| K57Y0.12KW | 0.12KW | 13rpm | 90N.m | 6.7 |
| K57Y0.12KW | 0.12KW | 13rpm | 85N.m | 7 |
| K57Y0.12KW | 0.12KW | 15rpm | 75N.m | 8 |
KF58減速機配0.18KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K57Y0.18KW | 0.18KW | 9.1rpm | 189N.m | 3.2 |
| K57Y0.18KW | 0.18KW | 11rpm | 161N.m | 3.7 |
| K57Y0.18KW | 0.18KW | 12rpm | 141N.m | 4.3 |
| K57Y0.18KW | 0.18KW | 13rpm | 134N.m | 4.5 |
| K57Y0.18KW | 0.18KW | 15rpm | 118N.m | 5.1 |
| K57Y0.18KW | 0.18KW | 17rpm | 100N.m | 6 |
KF58減速機配0.25KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K57Y0.25KW | 0.25KW | 9rpm | 265N.m | 2.2 |
| K57Y0.25KW | 0.25KW | 10rpm | 225N.m | 2.6 |
| K57Y0.25KW | 0.25KW | 12rpm | 199N.m | 3 |
| K57Y0.25KW | 0.25KW | 13rpm | 189N.m | 3.2 |
| K57Y0.25KW | 0.25KW | 14rpm | 166N.m | 3.6 |
| K57Y0.25KW | 0.25KW | 17rpm | 141N.m | 4.3 |
KF58減速機配0.37KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K57Y0.37KW | 0.37KW | 9.5rpm | 370N.m | 1.6 |
| K57Y0.37KW | 0.37KW | 11rpm | 315N.m | 1.9 |
| K57Y0.37KW | 0.37KW | 13rpm | 275N.m | 2.2 |
| K57Y0.37KW | 0.37KW | 13rpm | 260N.m | 2.3 |
| K57Y0.37KW | 0.37KW | 15rpm | 230N.m | 2.6 |
| K57Y0.37KW | 0.37KW | 18rpm | 196N.m | 3.1 |
| K57Y0.37KW | 0.37KW | 20rpm | 177N.m | 3.4 |
KF58減速機配0.55KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K57Y0.55KW | 0.55KW | 11rpm | 470N.m | 1.25 |
| K57Y0.55KW | 0.55KW | 13rpm | 410N.m | 1.45 |
| K57Y0.55KW | 0.55KW | 13rpm | 390N.m | 1.55 |
| K57Y0.55KW | 0.55KW | 15rpm | 340N.m | 1.75 |
| K57Y0.55KW | 0.55KW | 18rpm | 290N.m | 2.1 |
| K57Y0.55KW | 0.55KW | 20rpm | 260N.m | 2.3 |
| K57Y0.55KW | 0.55KW | 23rpm | 230N.m | 2.6 |
| K57Y0.55KW | 0.55KW | 24rpm | 215N.m | 2.8 |
KF58減速機配0.75KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K57Y0.75KW | 0.75KW | 11rpm | 625N.m | 0.95 |
| K57Y0.75KW | 0.75KW | 13rpm | 550N.m | 1.1 |
| K57Y0.75KW | 0.75KW | 14rpm | 520N.m | 1.15 |
| K57Y0.75KW | 0.75KW | 16rpm | 455N.m | 1.3 |
| K57Y0.75KW | 0.75KW | 18rpm | 385N.m | 1.55 |
| K57Y0.75KW | 0.75KW | 20rpm | 350N.m | 1.7 |
| K57Y0.75KW | 0.75KW | 23rpm | 305N.m | 1.95 |
| K57Y0.75KW | 0.75KW | 25rpm | 290N.m | 2.1 |
| K57Y0.75KW | 0.75KW | 29rpm | 245N.m | 2.4 |
| K57Y0.75KW | 0.75KW | 32rpm | 225N.m | 2.7 |
KF58減速機配1.1KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K57Y1.1KW | 1.1KW | 16rpm | 670N.m | 0.9 |
| K57Y1.1KW | 1.1KW | 18rpm | 570N.m | 1.05 |
| K57Y1.1KW | 1.1KW | 20rpm | 610N.m | 1.15 |
| K57Y1.1KW | 1.1KW | 23rpm | 450N.m | 1.3 |
| K57Y1.1KW | 1.1KW | 25rpm | 425N.m | 1.4 |
| K57Y1.1KW | 1.1KW | 29rpm | 360N.m | 1.65 |
| K57Y1.1KW | 1.1KW | 32rpm | 330N.m | 1.8 |
| K57Y1.1KW | 1.1KW | 37rpm | 285N.m | 2.1 |
| K57Y1.1KW | 1.1KW | 39rpm | 265N.m | 2.3 |
| K57Y1.1KW | 1.1KW | 47rpm | 225N.m | 2.7 |
| K57Y1.1KW | 1.1KW | 52rpm | 200N.m | 3 |
| K57Y1.1KW | 1.1KW | 59rpm | 179N.m | 3.4 |
| K57Y1.1KW | 1.1KW | 62rpm | 169N.m | 3.6 |
| K57Y1.1KW | 1.1KW | 73rpm | 144N.m | 4 |
| K57Y1.1KW | 1.1KW | 80rpm | 131N.m | 4.2 |
| K57Y1.1KW | 1.1KW | 93rpm | 113N.m | 4.7 |
| K57Y1.1KW | 1.1KW | 106rpm | 99N.m | 5.2 |
| K57Y1.1KW | 1.1KW | 118rpm | 89N.m | 4.7 |
| K57Y1.1KW | 1.1KW | 125rpm | 84N.m | 5 |
| K57Y1.1KW | 1.1KW | 147rpm | 71N.m | 5.7 |
| K57Y1.1KW | 1.1KW | 162rpm | 65N.m | 6 |
| K57Y1.1KW | 1.1KW | 187rpm | 56N.m | 6.5 |
| K57Y1.1KW | 1.1KW | 215rpm | 49N.m | 7.1 |
| K57Y1.1KW | 1.1KW | 3rpm | 35N.m | 8.6 |
KF58減速機配1.5KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K57Y1.5KW | 1.5KW | 23rpm | 620N.m | 0.95 |
| K57Y1.5KW | 1.5KW | 24rpm | 585N.m | 1 |
| K57Y1.5KW | 1.5KW | 29rpm | 500N.m | 1.2 |
| K57Y1.5KW | 1.5KW | 32rpm | 450N.m | 1.3 |
| K57Y1.5KW | 1.5KW | 36rpm | 390N.m | 1.5 |
| K57Y1.5KW | 1.5KW | 39rpm | 365N.m | 1.65 |
| K57Y1.5KW | 1.5KW | 46rpm | 305N.m | 1.95 |
| K57Y1.5KW | 1.5KW | 51rpm | 275N.m | 2.2 |
| K57Y1.5KW | 1.5KW | 58rpm | 245N.m | 2.4 |
| K57Y1.5KW | 1.5KW | 62rpm | 230N.m | 2.6 |
| K57Y1.5KW | 1.5KW | 72rpm | 198N.m | 2.9 |
KF58減速機配2.2KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K57Y2.2KW | 2.2KW | 32rpm | 665N.m | 0.9 |
| K57Y2.2KW | 2.2KW | 36rpm | 575N.m | 1.05 |
| K57Y2.2KW | 2.2KW | 39rpm | 535N.m | 1.1 |
| K57Y2.2KW | 2.2KW | 46rpm | 450N.m | 1.3 |
| K57Y2.2KW | 2.2KW | 51rpm | 410N.m | 1.45 |
| K57Y2.2KW | 2.2KW | 58rpm | 360N.m | 1.65 |
| K57Y2.2KW | 2.2KW | 62rpm | 340N.m | 1.75 |
| K57Y2.2KW | 2.2KW | 72rpm | 290N.m | 2 |
| K57Y2.2KW | 2.2KW | 80rpm | 260N.m | 2.1 |
| K57Y2.2KW | 2.2KW | 92rpm | 225N.m | 2.3 |
| K57Y2.2KW | 2.2KW | 106rpm | 199N.m | 2.6 |
| K57Y2.2KW | 2.2KW | 117rpm | 179N.m | 2.3 |
| K57Y2.2KW | 2.2KW | 124rpm | 169N.m | 2.5 |
KF58減速機配3KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K57Y3KW | 3KW | 46rpm | 615N.m | 0.95 |
| K57Y3KW | 3KW | 51rpm | 555N.m | 1.05 |
| K57Y3KW | 3KW | 58rpm | 490N.m | 1.2 |
| K57Y3KW | 3KW | 62rpm | 460N.m | 1.3 |
| K57Y3KW | 3KW | 72rpm | 395N.m | 1.45 |
| K57Y3KW | 3KW | 80rpm | 355N.m | 1.55 |
| K57Y3KW | 3KW | 92rpm | 310N.m | 1.7 |
| K57Y3KW | 3KW | 106rpm | 270N.m | 1.9 |
| K57Y3KW | 3KW | 117rpm | 240N.m | 1.7 |
| K57Y3KW | 3KW | 124rpm | 230N.m | 1.8 |
| K57Y3KW | 3KW | 146rpm | 196N.m | 2.1 |
| K57Y3KW | 3KW | 161rpm | 178N.m | 2.2 |
| K57Y3KW | 3KW | 186rpm | 154N.m | 2.4 |
| K57Y3KW | 3KW | 213rpm | 134N.m | 2.6 |
| K57Y3KW | 3KW | 298rpm | 96N.m | 3.1 |
KF58減速機配4KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K57Y4KW | 4KW | 60rpm | 640N.m | 0.95 |
| K57Y4KW | 4KW | 63rpm | 605N.m | 1 |
| K57Y4KW | 4KW | 74rpm | 515N.m | 1.1 |
| K57Y4KW | 4KW | 82rpm | 470N.m | 1.2 |
| K57Y4KW | 4KW | 94rpm | 405N.m | 1.3 |
| K57Y4KW | 4KW | 108rpm | 355N.m | 1.45 |
| K57Y4KW | 4KW | 120rpm | 315N.m | 1.3 |
| K57Y4KW | 4KW | 127rpm | 300N.m | 1.4 |
| K57Y4KW | 4KW | 150rpm | 255N.m | 1.6 |
| K57Y4KW | 4KW | 165rpm | 230N.m | 1.7 |
| K57Y4KW | 4KW | 190rpm | 200N.m | 1.8 |
| K57Y4KW | 4KW | 219rpm | 175N.m | 1.95 |
| K57Y4KW | 4KW | 306rpm | 125N.m | 2.4 |
KF58減速電機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：K58減速機
關鍵詞:交流減速機配電機一體式_大扭力減速機_伺服電機減速機_伺服減速機_伺服電機減速器_伺服減速器_伺服電機減速機一體機_伺服減速機一體式_大扭力減速器_GKF系列減速機_KF系列減速機_伺服電機減速機一體式_伺服電機減速機一體化_KF系列減速器
KF系列齒輪減速馬達型號：KF38減速機,KF48減速機,KF58減速機,KF68減速機,KF78減速機,KF88減速機,KF98減速機,KF108減速機,KF128減速機,KF158減速機,KF167減速機,KF187減速機
KF系列直角減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: KF58減速電機 KF57斜齒輪傘齒輪減速機 KF57減速機功率 KF57減速機基座尺寸 KF57減速機模型 KF57減速機型號參數
